Description

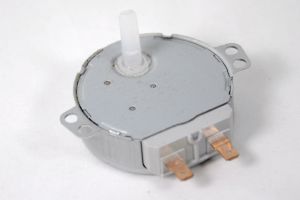

Lower stirrer motor for Panasonic NE2146 & Panasonic NE2156 commercial microwave ovens
Part number: A6144-3280 or A6144-3E20
Item 48 on the attached diagram.
Genuine Panasonic stirrer motor for driving the lower stirrer (antenna) in Panasonic commercial microwave ovens.
Electrical specifications:
Voltage supply 120 volts 50/60 Hz AC
Rotation speed 18.8 rpm to 22.6 rpm 2.5 watts
Dimensions:
Drive shaft length 20 mm
Rectangular drive shaft 6 mm by 3 mm
Body diameter 50 mm
Body height 16 mm
Suitable for:
Panasonic NE-2146 (NE2146),
Panasonic NE-2156 (NE2156).
