Description

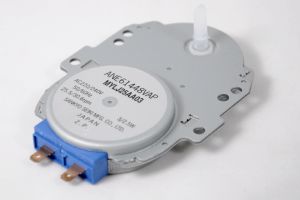

Upper stirrer motor for Panasonic commercial microwave ovens.
Genuine Panasonic spare part. Part number: ANE61448V0AP
Upper stirrer motor for Panasonic commercial microwave ovens.
The microwave turntable motor is a synchronous motor so the turntable can turn is either direction. The microwave turntable motor uses a built in gearbox to drive the turntable tray via the microwave turntable coupling.
Panasonic stirrer motor electrical and physical specifications:
Voltage- 120 volts 50/60 Hz AC 34.9 rpm 2.5 watts
Dimensions- drive shaft length 20 mm
Rectangular drive shaft- 6 mm by 3 mm
Body- diameter 50 mm
Body- height 16 mm
Suitable for: Panasonic NE-1780 (NE1780) commercial microwave ovens,
Panasonic NE-2640 (NE2640) commercial microwave ovens.
