Description

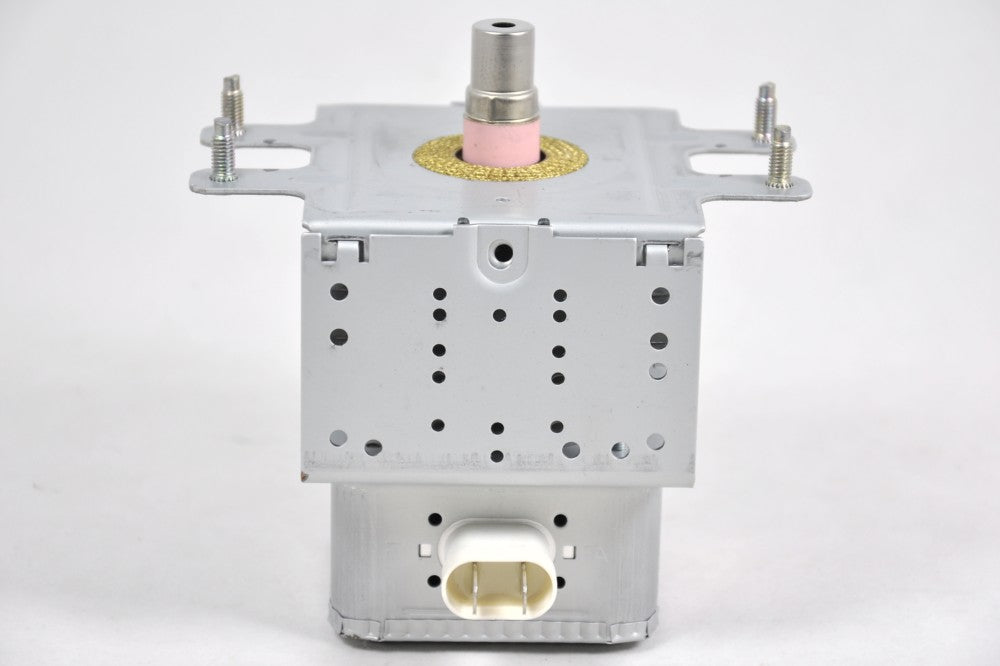

MSM702 1050 watt magnetron for microwave ovens.
Specifications:
Air vent width = 95 mm
Total height = 135 mm
Has 8 mm mounting bolts
Maximum RF power 1050 watts
RF output Frequency 2455 MHz
Filament voltage 3.15 V AC
Peak anode voltage 4.0 KV @ 350 ma DC
The MSM702 magnetron is a direct equivalent to the following types:
AWI.AM702
2M107-11
2M107-A66
2M107-A82
2M107-A95
2M107-A96
2M107-A97
2M107A825
2M128
2M142
2M157
2M157-M2B
2M161-09
2M167B-M10
2M172-AJ
2M172-JAN
2M172-YCN2
2M204-M3
2M219-J
2M247-J
A670-0
H3081
OM75-010
OM75-10
S1075.
