Description

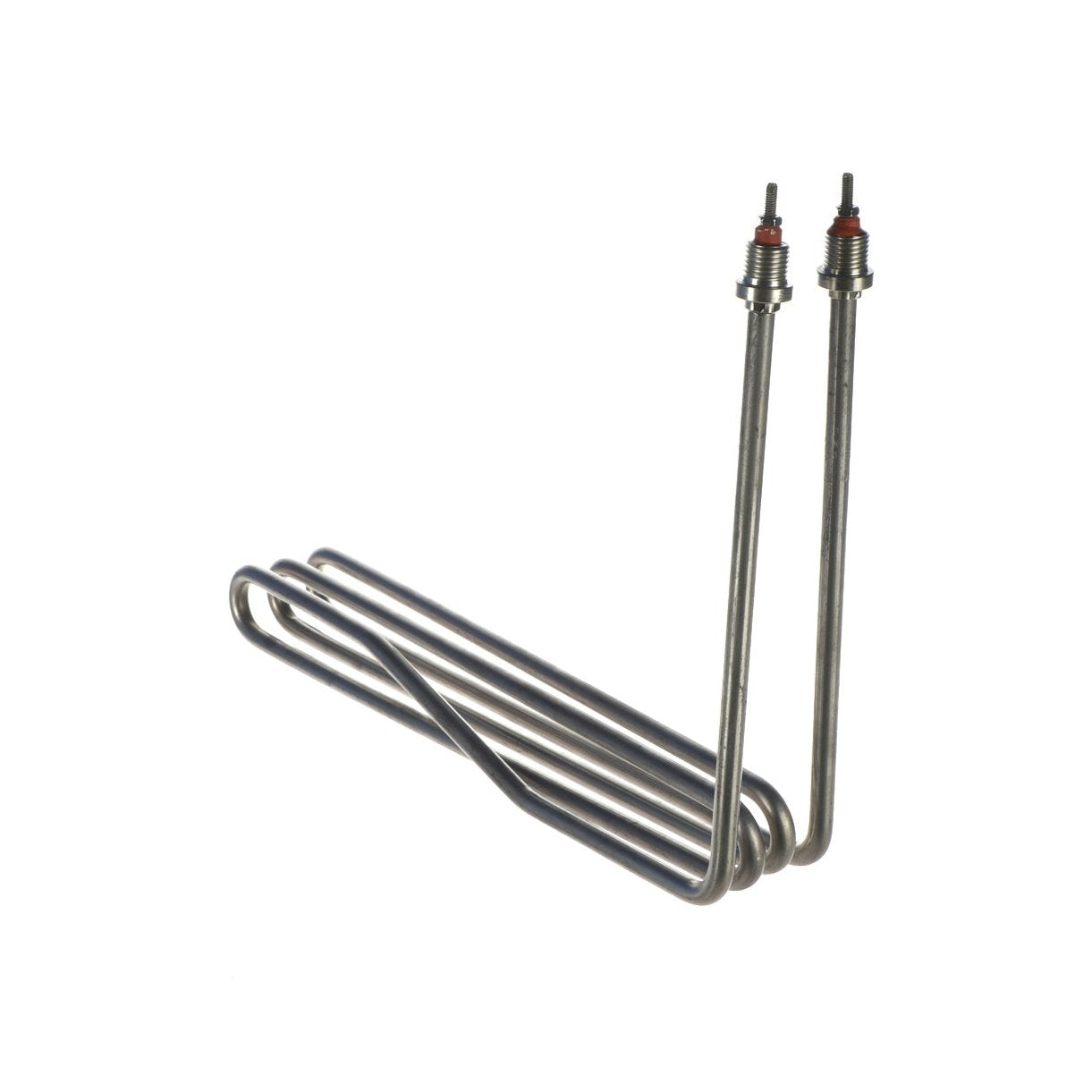

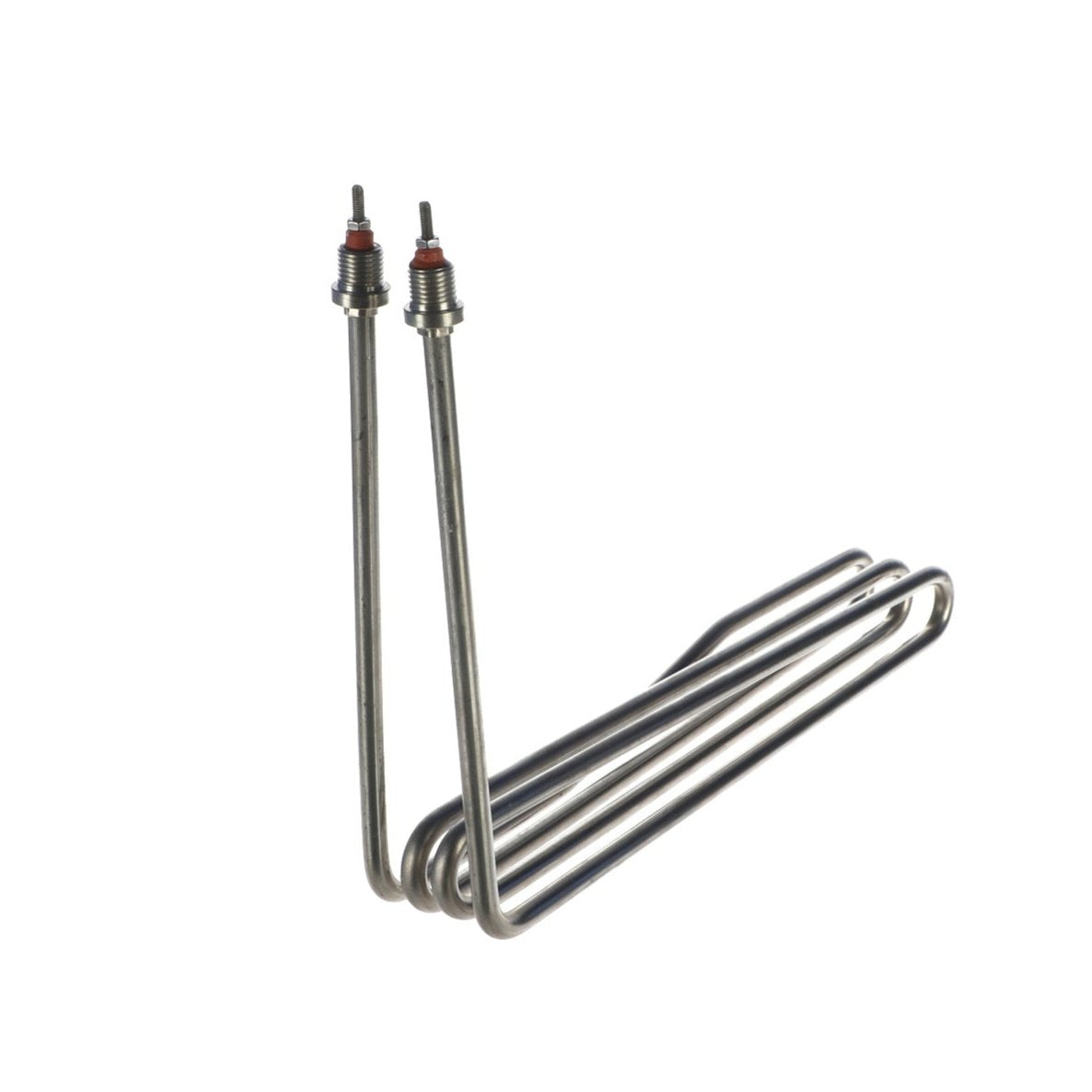

MKN HEATING ELEMENT 3.3 KW; 230 V - 572124
Compatible to LFG.3755246
length 315 mm - width 33 mm
height 216 mm - fittings M14x1.5 mm
H 216mm H1 170mm H2 46mm thread M14x1.5 tube ø 8.5mm
mounting distance 30mm windings 3 2 hole fixing connection M4
connection length 22mm immersion heater
Suitable for the following MKN Fryer models :
0220301B00, 0220301B01, 0220301B02, 0220302A00, 0220302B00, 0220302B01, 0220302B02, 0220302C00, 0220302C01, 0220302C02, 0220302C03, 0220302E00, 0220302E01, 0220302H00, 0220302H01, 0220304-00, 0220305-00, 0720325B03, 0720325B04, 1220301B00, 1220301B01, 1220301B02, 1220301B03, 1220301B04, 1220301E00, 1220301E01, 1220302B00, 1220302B01, 1220302E00, 1220303B00, 1220303B01, 1220303B02, 1220303B03, 1220303B04, 1220303B05, 1220303C00, 1220303C01, 1220303C02, 1220303C03, 1220303E00, 1220303E01, 1220303E02, 1220303H00, 1220303H01, 1220303H02, 1220303H03, 1220303K00, 1220303K01, 1220304B00, 1220304B01, 1220304C00, 1220304C01, 1220304C02, 1220304E00, 1220304H00, 1220304H01, 1220321B00, 1220321B01, 1220325B00, 1220325B01, 1220325B02, 1220326B00, 1220326B01, 1220327B01, 1320301B00, 1320301B01, 1320301E00, 1320301E01, 1320301E02, 1320302B00, 1320302B01, 1320302E00, 1320302E01, 1320303B00, 1320303B01, 1320303B02, 1320303C00, 1320303C01, 1320303C02, 1320303E00, 1320303E01, 1320303E02, 1320303E03, 1320303H00, 1320303H01, 1320303H02, 1320303H03, 1320303H04, 1320304B00, 1320304B01, 1320304C00, 1320304C01, 1320304C02, 1320304E00, 1320304E01, 1320304H00, 1320304H01, 1320304H02, 1320304H03, 1320304H04, 1320321B00, 1320321B01, 1320321B02, 1320323B00, 1320325B00, 1320325B01, 1320325B02, 1320325C00, 1320325C01, 1320325C02, 1320327B00, 1320327C00, 1320327C01, 1320327C02, 1320327Z00, 1320327Z01, 1320335C00, 1420301B00, 1420301B01, 1420301B02, 1420302B00, 1420302B01, 1420302B02, 1420302C00, 1420308B00, 1420308B01, 1420308B02, 1420309B00, 1420309B01, 1420309B02, 1420309C00, 1420309C01, 1420309C02, 1420309C03, 1420321B00, 1420321B01, 1420321B02, 1420321B03, 1420323B00, 1420323B01, 1420325B00, 1420325B01, 1420325B02, 1420325B03, 1420325B04, 1420325C00, 1420325C01, 1420325C02, 1420325C03, 1420327A00, 1420327A01, 1420327C00, 1420327C01, 1520321B00, 1520321B01, 1520321B02, 1520321B03, 1520325B00, 1520325B01, 1520325B02, 1520325B03, 1520325B04, 1520325C00, 2020301B00, 2020301B01, 2020301B02, 2020301B04, 2020301C00, 2020301C01, 2020301C02, 2020301C03, 2020301C04, 2020321B00, 2020321B01, 2020321B02, 2020321B03, 2020323B00, 2020323B01, 2020325B00, 2020325B01, 2020325B02, 2020325C00, 2020325C01, 2020325C02, 2020327B00, 2020327B01, 2020327B02, 2020327C01, 2020327C02, 2020327C03, 2020327C04, 2120301B00, 2120301B01, 2120301B03, 2120301B04, 2120301B05, 2120302B00, 2120302B01, 2120302B03, 2120302B04, 2120302C00, 2120302C01, 2120302C02, 2120302C03, 2120306B00, 2120321B00, 2120321B01, 2120321B02, 2120323B00, 2120323B01, 2120325B00, 2120325B01, 2120325B02, 2120325C00, 2120325C01, 2120325C02, 2120327B00, 2120327B01, 2120327B02, 2120327B03, 2120327C00, 2120327C01, 2120327C02, 3020301B00, 3020301B01, 3020301B02, 3020301B03, 3020301C00, 3020325B00, 3020325B01, 3020325B02, 3020327B00, 3020327B01, 3020327B02, 3020327B03
Compatible with MKN part number 572124.
