Description

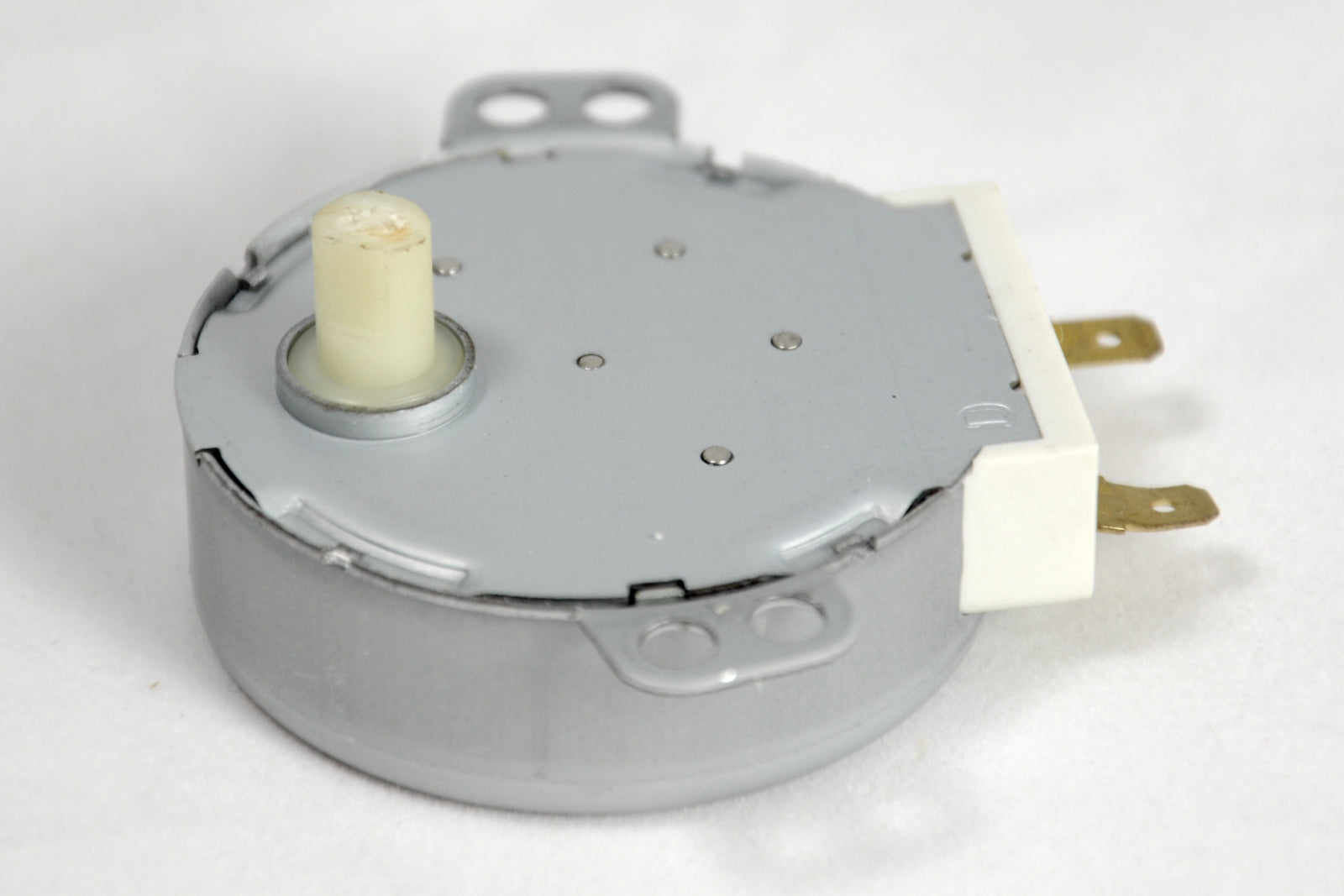

240 volt turntable motor for Panasonic microwave ovens,
Part number Z63266S30XP.
Equivalent to the following Panasonic turntable motors:
3966310100, 351200300001, Z63269W00XP, Z63269P00HP, Z6326BS20BP, Z63266S30XP, M77303, Q15297, Z63266530XP ,11002014A00325
Specifications:
Voltage = 240 volts AC 50-60 Hz
Rotation speed = 5-6 RPM

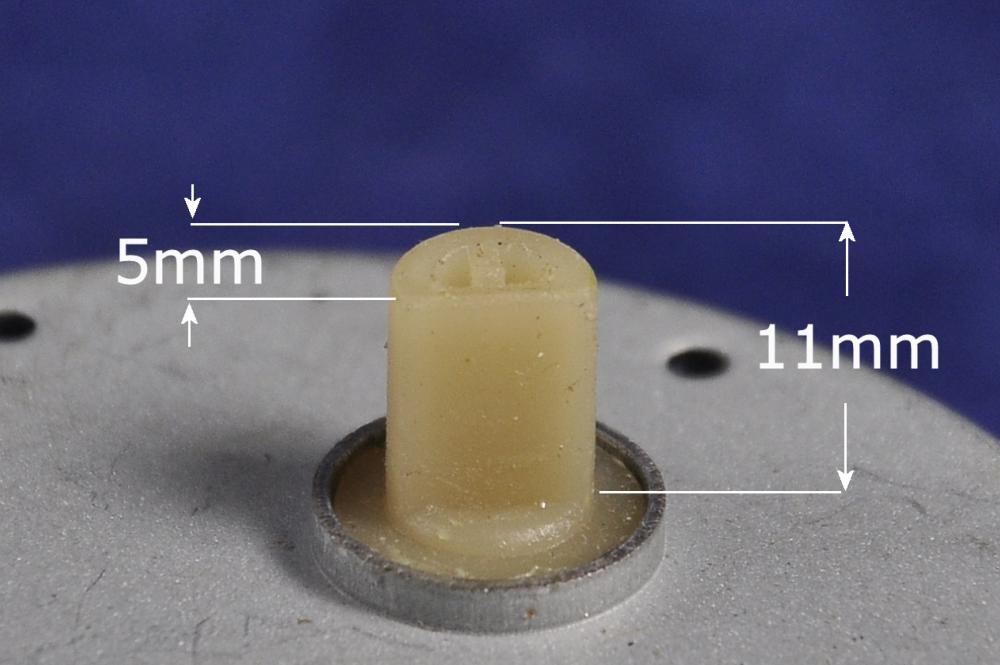

D shaped cross section drive shaft
Shaft length = 13 mm
Shaft maximum diameter = 7 mm
Diameter to flat side 7 mm.
Terminal width 4.8 mm.240 volt AC 5/6 RPM Panasonic turntable motor.
NN-SD271S, NN-SD261M, NN-SD251W, NN-GD371S, NN-GD38HS, NN-GD37HS, NN-GD371S, NN-CD58JS, NN-CT57JM, NN-CT56JB, NN-CT54JW, NN-CT55JW, NN-CT585S, NN-CT565M, NN-CT555W, NN-ST48KS, NN-ST46KB, NN-ST45KW, NN-SD27HS, NN-SD26HM, NN-SD25HB, NN-E271WM, NN-E281BM, NN-CD87KS
The microwave turntable motor is a synchronous motor so the turntable can turn is either direction. The microwave turntable motor uses a built in gearbox to drive the turntable tray via the microwave turntable coupling.
