Description

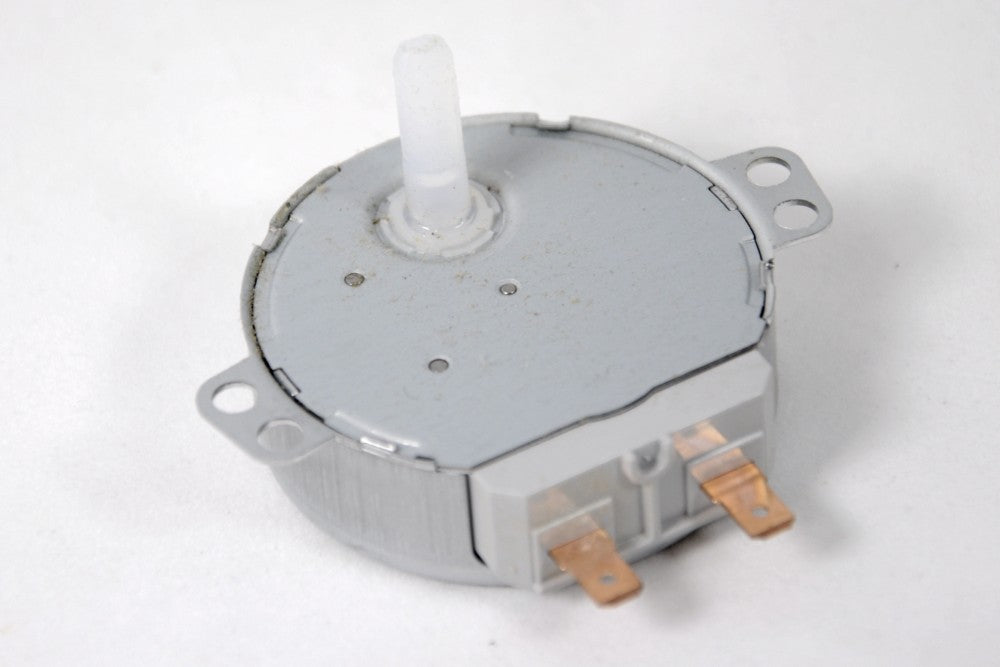

240 volt AC Stirrer motor for Panasonic NN-CF771SB microwave oven
Part number: Z61449M60BP
Panasonic NN-CF771SB microwave ovens.
Specifications:
Rectangular plastic drive shaft
Shaft length 35 mm
Shaft maximum width 6 mm
Shaft minimum width 3 mm
Terminal width 4.8mm.
240 volts AC
50/60hz
4 watts
5/6 RPM
The microwave turntable motor is a synchronous motor so the turntable can turn is either direction. The microwave turntable motor uses a built in gearbox to drive the turntable tray via the microwave turntable coupling.
